If you have ever spent a shift in a chemical processing plant or managed a pharmaceutical packaging line, you know that safety isn’t just about wearing your hard hat or steel-toed boots. It is about the invisible hazards that you can’t see until it is too late. One of those silent threats is static electricity during fluid transfer.
When you are transfering highly flammable solvents like toluene, heptane, or ethanol at high flow rates, you are essentially creating a giant static generator inside your plumbing. If you are using standard plastic lines, you are playing a risky game. To keep your team and your facility safe, a high-quality conductive PTFE hose is not just an option—it is your primary line of defense.
In this guide, we will break down exactly how static builds up in solvent transfer lines, why standard hoses fail, and how a proper conductive PTFE hose keeps your operations running without turning your factory into a fireball. Let’s explore why choosing a conductive PTFE hose is the smartest engineering decision you can make this year.
Why Standard PTFE Hoses are a Major Risk in Solvent Transfer
PTFE (Polytetrafluoroethylene) is basically the holy grail of chemical transfer. It resists almost every chemical on the planet, handles crazy temperature swings from -70°C to 260°C, and has a super smooth surface that prevents clogs. But standard white PTFE has one massive, glaring weakness: it is a near-perfect electrical insulator.
Standard White PTFE = Extreme Chemical Resistance + Extremely High Electrical Resistance (Insulator)
When non-conductive fluids—like organic solvents—flow through a standard white PTFE tube, they rub against the inner walls. This friction strips electrons, creating a phenomenon known as streaming potential.
Without a conductive PTFE hose, this electric charge accumulates on the inner surface of the hose. Because PTFE is such a good insulator, the charge has nowhere to go. It just sits there, building up more and more voltage by the second.
Eventually, that voltage gets so high that it has to find a path to the ground. The charge will literally punch a microscopic hole (a pinhole) right through the PTFE wall to reach the outer stainless steel wire braid. When that happens, you get a double disaster:
- A hot electric spark is generated inside a flammable environment.
- Flammable solvent starts leaking through the new pinhole directly onto that spark.
This is a classic recipe for a catastrophic industrial fire or explosion. This is precisely why a conductive PTFE hose is required for any process involving flammable liquids or explosive ATEX zones.
How a Conductive PTFE Hose Solves the Static Problem
So, how do we make an insulator conduct electricity? We do it by adding carbon.

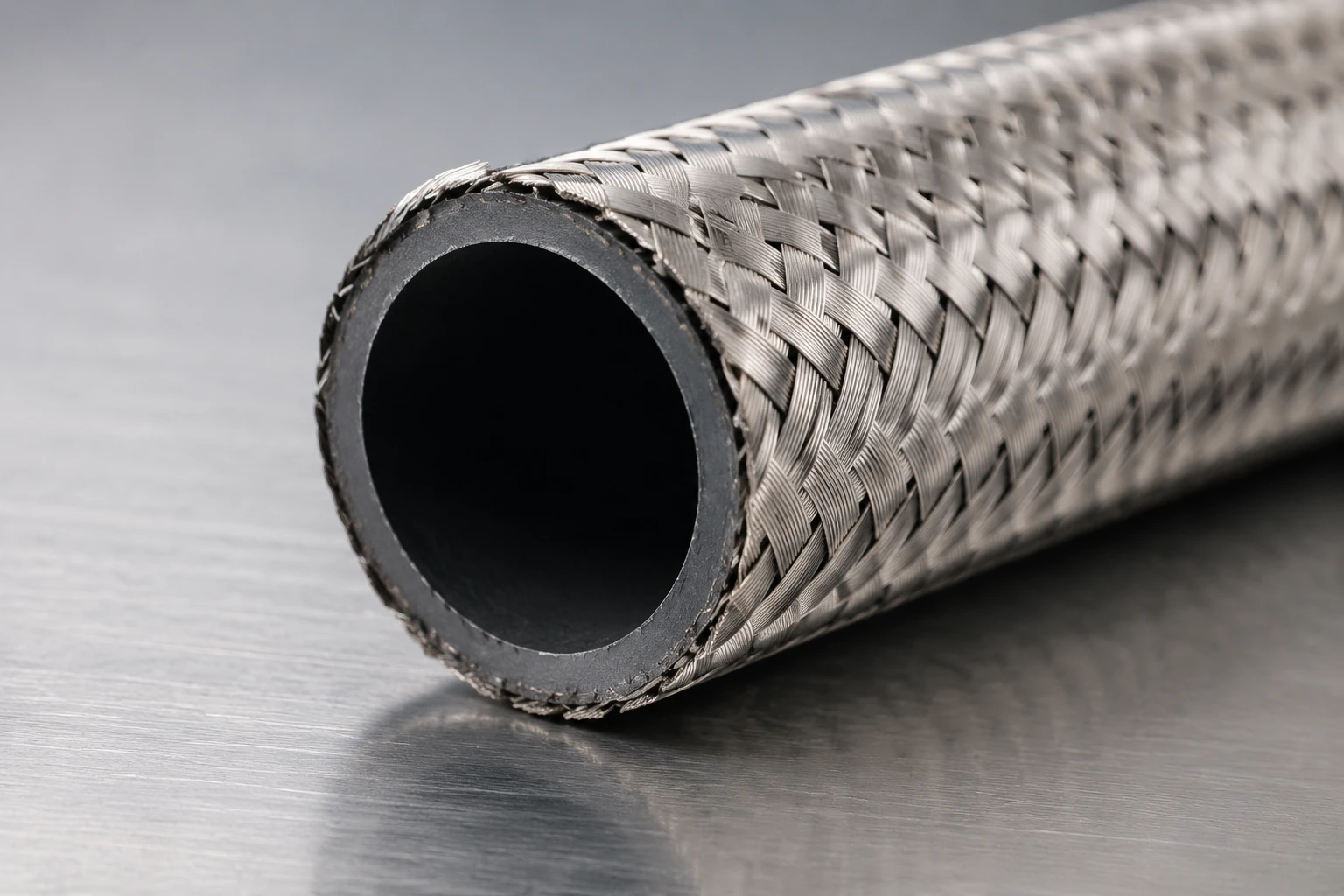

A proper conductive PTFE hose does not use standard white PTFE. Instead, it features a co-extruded inner liner containing high-purity, FDA-compliant carbon black. This carbon-filled layer is often referred to as black PTFE.
The carbon black forms a continuous, microscopic conductive pathway along the entire inside of the hose. Instead of letting static build up on the walls, the conductive PTFE hose safely carries the charge along the inner liner to the metal end fittings, which are connected to the plant’s ground system.
Static Charge Generated -> Dissipated via Carbon Black Liner -> Channeled to Metal End Fittings -> Safely Earthed to Ground
By ensuring the static electricity is transformed into a harmless current that flows directly to the earth, a conductive PTFE hose prevents the voltage from ever reaching the “spark point”.
For any plant EHS (Environmental Health and Safety) officer looking to secure hazardous transfer zones, installing a conductive PTFE hose on all solvent lines is the most effective engineering control available.
Flexible PTFE Inner Flat Outer Corrugated Tubing for Food Processing
Our Flexible PTFE Inner Flat Outer Corrugated Tubing is designed with a smooth inner layer for easy cleaning and a corrugated outer for flexibility in food processing lines. This Inner Smooth Bore Outer Corrugated PTFE Tube ensures FDA-compliant, non-toxic transfer of edibles and beverages.
Perfect for conveying viscous materials, the PTFE Bellows Tube variant prevents flavor contamination and withstands frequent washdowns.
Incorporate this Internal Flat External Wave Corrugated Pipe into your setup; its PTFE Inner Flat Outer Corrugated Tubing structure guarantees hygiene and durability.
The Physics of Streaming Current (Plain Text Formulas)
If you are an engineer or a safety officer, you probably want to see the actual math behind this risk. Static charge generation isn’t random; it follows clear physical laws. The streaming current generated when a liquid flows through a pipe can be calculated using empirical formulas.
Here is how the streaming current (I) is generally calculated in a straight pipe or hose:
Streaming Current (I) = c * (v^2) * (d^1.5)
Where:
- I is the generated streaming current in Amperes.
- c is an empirical constant that depends on the specific fluid properties (like its dielectric constant and resistivity).
- v is the fluid velocity through the hose in meters per second (m/s).
- d is the internal diameter of the hose in meters (m).
Looking closely at this formula, you can see that the streaming current is proportional to the square of the velocity (v^2). This means if you double your solvent transfer speed to meet a tight production deadline, you aren’t just doubling the static risk—you are quadrupling it!
Without a conductive PTFE hose, that extra charge has nowhere to run. If you are running high-velocity pumps, a standard white hose is a ticking time bomb. With a conductive PTFE hose, however, the streaming current (I) is safely absorbed by the carbon-filled inner wall and bled off before any high voltage can develop.
To keep the resistance low enough to prevent sparks, industrial safety standards like ISO 8031 and EN 12115 require the electrical resistance of the hose assembly to be tightly controlled.
Maximum Allowed Resistance End-to-End = 1,000,000 Ohms (10^6 Ohms)
A certified conductive PTFE hose easily meets this requirement, keeping the resistance well below 10^6 ohms to ensure that any charge is instantly grounded.
Standards and Compliance for Anti-Static Hoses
When sourcing a conductive PTFE hose for your facility, you cannot just take a supplier’s word for it. You need to ensure the product meets globally recognized safety and material standards. Here are the key certifications to look for:
1. ISO 8031 Compliance
This is the international standard that dictates how the electrical resistance and conductivity of rubber and plastic hoses are measured. A compliant conductive PTFE hose undergoes rigorous testing to prove that its electrical resistance from the inner tube to the metal end fittings does not exceed the safe limit of 10^6 ohms.
2. NFPA 77 (Static Electricity Guidelines)
The National Fire Protection Association’s NFPA 77 provides recommended practices for controlling static electricity in hazardous environments. It explicitly recommends using a conductive PTFE hose or bonded/grounded hoses when transfering flammable liquids (Class I liquids) like solvents.
3. FDA 21 CFR 177.1550 and 178.3297
If you work in pharmaceutical or food manufacturing, your conductive PTFE hose must also be sanitary. The PTFE resin must comply with FDA 21 CFR 177.1550, and the carbon black used to make the hose conductive must meet FDA 21 CFR 178.3297 for food-contact substances.
Comparing Standard PTFE and Conductive PTFE Hoses
To make your decision-making process easier, we have put together a comparison table of these two hose types. This is a great reference for your next safety audit or procurement meeting.
| Feature / Specification | Standard White PTFE Hose | Conductive PTFE Hose (Black PTFE) |
|---|---|---|
| Inner Liner Material | Virgin White PTFE | PTFE with Carbon Black Additives |
| Electrical Conductivity | Insulator (Non-conductive) | Fully Conductive / Anti-Static |
| Electrical Resistance | Greater than 10^9 Ohms | Less than 10^6 Ohms |
| Primary Applications | Corrosive acids, non-flammable fluids | Solvents, fuels, ATEX/flammable zones |
| FDA Approval | Yes (Virgin PTFE) | Yes (Using high-purity FDA carbon) |
| Explosion Prevention | No (High risk of static buildup) | Yes (Safely dissipates charge to ground) |
As you can see, while both types offer stellar chemical resistance, only a conductive PTFE hose has the physical properties required to keep a solvent transfer line from exploding.
Real-World Case Study: Solvent Fire Averted at a Paint Manufacturing Plant
Let’s look at how this plays out in the real world. A mid-sized paint and coatings plant was transfering toluene from a storage tank to a mixing vessel using a standard, non-conductive PTFE-lined hose. Toluene is notoriously non-conductive, meaning it builds static charges very quickly when pumped.
Because they were running a high-flow pump to hit daily production targets, the static charge inside the hose grew rapidly. One afternoon, a operator noticed a tiny hiss coming from the middle of the hose line. Within seconds, a small spark jumped from the hose’s stainless steel braid to the metal scaffolding, igniting the vaporized toluene leaking from a fresh pinhole.
Fortunately, the plant’s automatic fire suppression system put out the fire before it reached the main tanks. However, the incident resulted in two weeks of downtime, thousands of dollars in lost materials, and a massive safety audit.
The plant’s EHS manager reached out to us for a solution. We replaced every single solvent line in that facility with a custom, high-durability conductive PTFE hose from Teflon X.
The new conductive PTFE hose assemblies featured a co-extruded carbon liner and heavy-duty AISI 304 stainless steel braiding. Our team also guided them on implementing a strict grounding protocol during maintenance. Since the upgrade, the plant has run at full capacity for over three years without a single static discharge event or pinhole failure.
This is not a unique story. Every month, facilities around the world face fires that could have easily been avoided by swapping out simple plastic tubing for a certified conductive PTFE hose.
Braided Fuel Line – Anti Static PTFE Hose with Stainless Steel Reinforcement
Upgrade to our braided fuel line for enhanced safety and performance. The anti static PTFE hose dissipates static buildup, preventing explosions. This conductive braided tube features stainless steel reinforcement for added strength. It’s also a great option as a flexible gas line.
Best Practices for Installing and Grounding Your Hose
Buying a high-quality conductive PTFE hose is only half the battle. If you don’t install and maintain it correctly, you are still at risk. Here are some critical, real-world tips we give our B2B clients:
1. Ensure Metal-to-Metal Continuity
A conductive PTFE hose can only dissipate charge if it can pass those electrons to the end fittings. When crimping or swaging the fittings onto your conductive PTFE hose, make sure there is direct, physical contact between the carbon black inner liner and the metal coupling shank.
2. Connect to a Verified Ground
The metal end fittings of your conductive PTFE hose must be connected to a grounded pipe or vessel. If you are attaching the hose to a plastic tank, you must run a dedicated grounding wire from the hose fittings to a verified earthing rod.
3. Conduct Regular Resistance Tests
Over time, physical stress, bending, or chemical wear can degrade the carbon lining in your conductive PTFE hose. Implement an annual maintenance schedule to test the end-to-end resistance using a megohmmeter. If the resistance of your conductive PTFE hose exceeds 10^6 ohms, it is time to retire it.
If you are looking to source high-grade materials to construct your own assemblies or need pre-made options, exploring our comprehensive category of black carbon-filled PTFE tubes is a great place to start.
Frequently Asked Questions
What is the difference between a standard PTFE hose and a conductive PTFE hose?
A standard PTFE hose has a pure white inner tube that acts as an electrical insulator, allowing static charges to build up to dangerous levels during fluid transfer. A conductive PTFE hose features a black inner tube co-extruded with high-purity carbon black. This carbon addition allows the conductive PTFE hose to safely dissipate static electricity to the ground, preventing sparks and pinhole leaks.
How often should I test my conductive PTFE hose for electrical continuity?
We recommend testing your conductive PTFE hose assemblies at least once a year, or more frequently if they are subjected to constant flexing, vibration, or aggressive chemical cleaning. Use a calibrated megohmmeter to ensure the end-to-end resistance remains below 10^6 ohms as specified by ISO 8031.
Can a conductive PTFE hose be used for food and pharmaceutical applications?
Yes, absolutely! However, you must ensure that the carbon black used in the conductive PTFE hose is of high purity and fully FDA-compliant. Quality manufacturers use carbon black that meets FDA 21 CFR 178.3297, making the conductive PTFE hose safe for contact with foods, beverages, and pharmaceutical ingredients.
Why does static electricity build up in solvent transfer lines in the first place?
When non-conductive solvents flow through non-conductive plastic tubes, friction strips electrons from the fluid and the tube walls. This is called streaming potential. Because solvents like toluene, xylene, and heptane have very low electrical conductivity, they cannot dissipate this charge naturally, leading to rapid voltage buildup that can only be resolved by using a grounded conductive PTFE hose.
Anti-Static PTFE Braided Hose – Flexible Gas Line with Stainless Steel Braid
Our anti-static PTFE braided hose is ideal for flexible gas line applications. Reinforced with stainless steel, this braided fuel line ensures durability and safety. The conductive braided tube dissipates static electricity, perfect for hazardous environments. It’s the perfect stainless steel braided teflon hose option.
Is Your Facility Safe from Static Sparks? Let’s Talk!
Managing plant safety can feel like an endless uphill battle, but solvent transfer does not have to be a source of stress. Upgrading your systems to include a robust, certified conductive PTFE hose is a straightforward step that eliminates one of the most hazardous risks in chemical processing.
At Teflon X, we manufacture premium, high-durability fluoropolymer products designed specifically to handle tough, aggressive, and flammable chemical environments. Whether you need custom-fabricated anti-static hose assemblies or bulk black carbon-filled PTFE tubes to integrate into your existing setups, our engineering team has the expertise to guide you to the perfect solution.
Do not wait for a near-miss—or worse, a major accident—to audit your solvent lines. Take action today to protect your team and secure your operations.
